起源の場所:
広東,中国
ブランド名:
HILINK
証明:
CE FCC Rohs
モデル番号:
HL-SFP-BX-10KM
HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS Compliant
Product Features
Supports 9.95 to 10.3Gb/s bit rates
Simplex LC Connector
Hot pluggable SFP+ footprint
Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
Applicable for 10km SMF connection
Low power consumption, < 1W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C
Industrial:-40 to 80 °C
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other optical link
Product Descriptions
HL-SFP-BX-10KM series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The HL-SFP-BX-10KM module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.

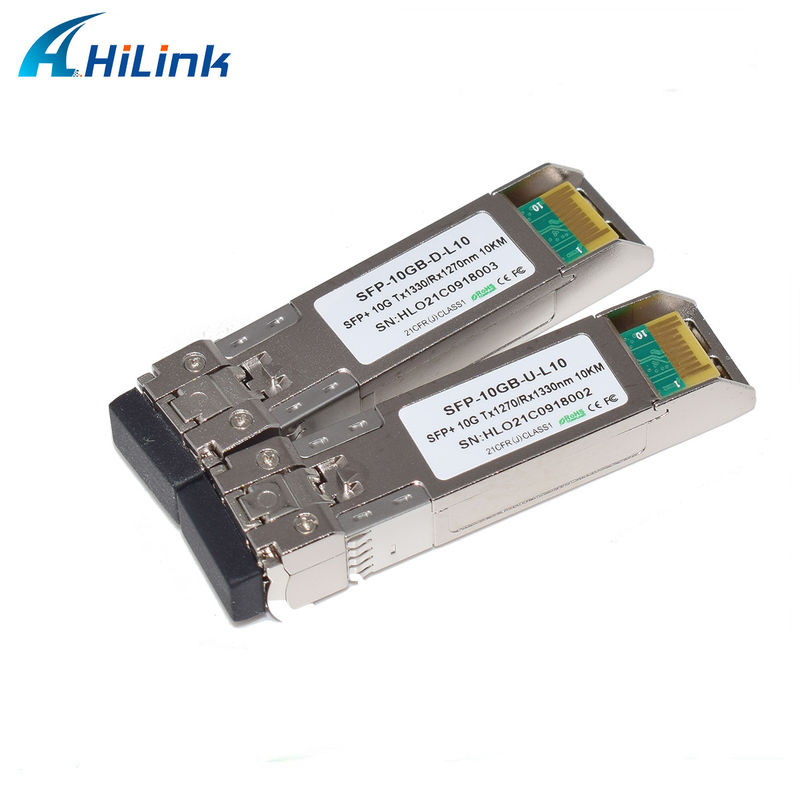

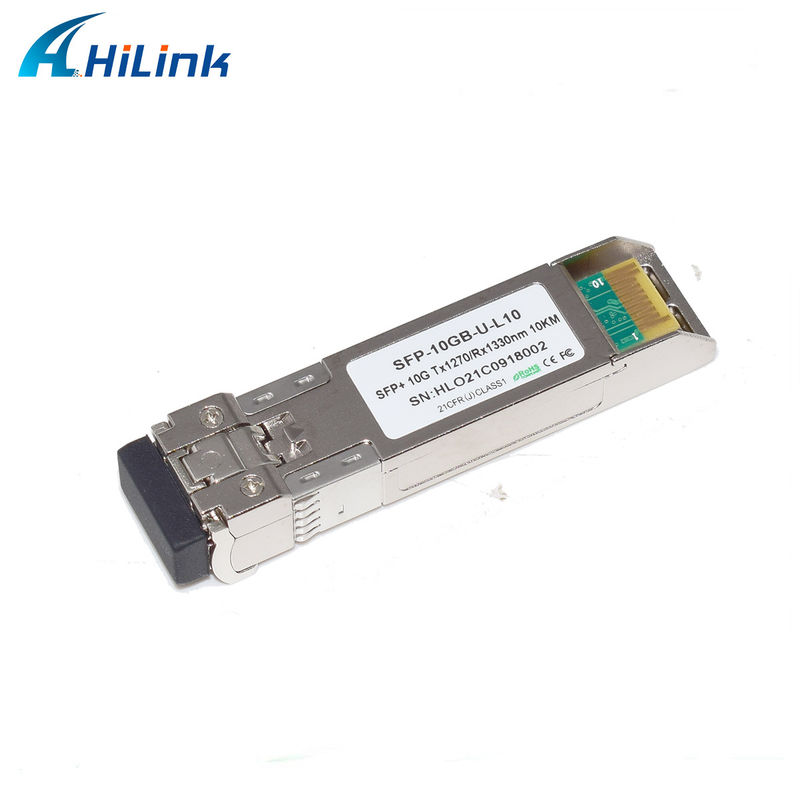

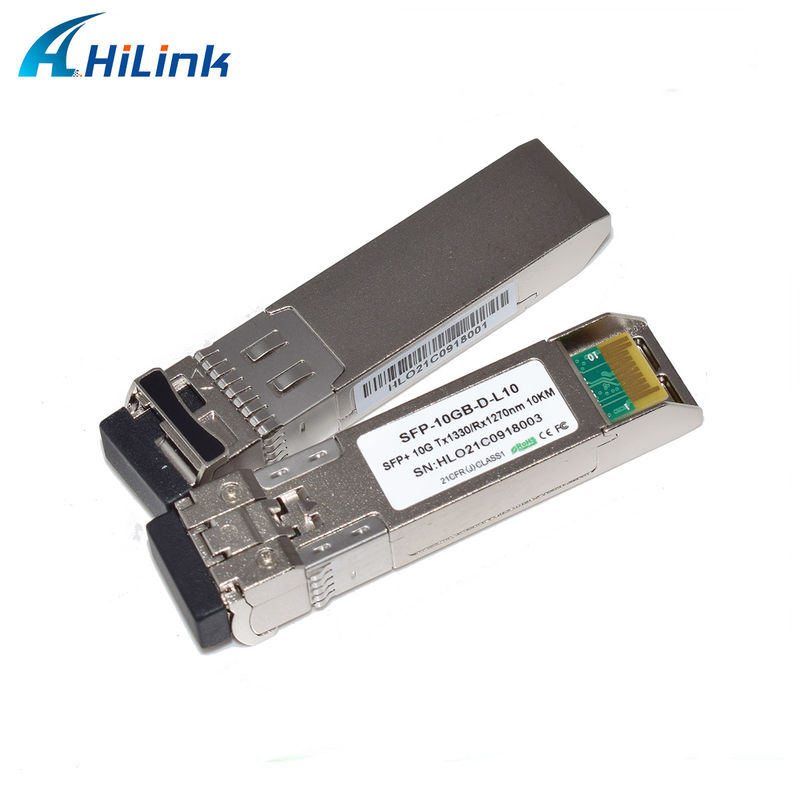

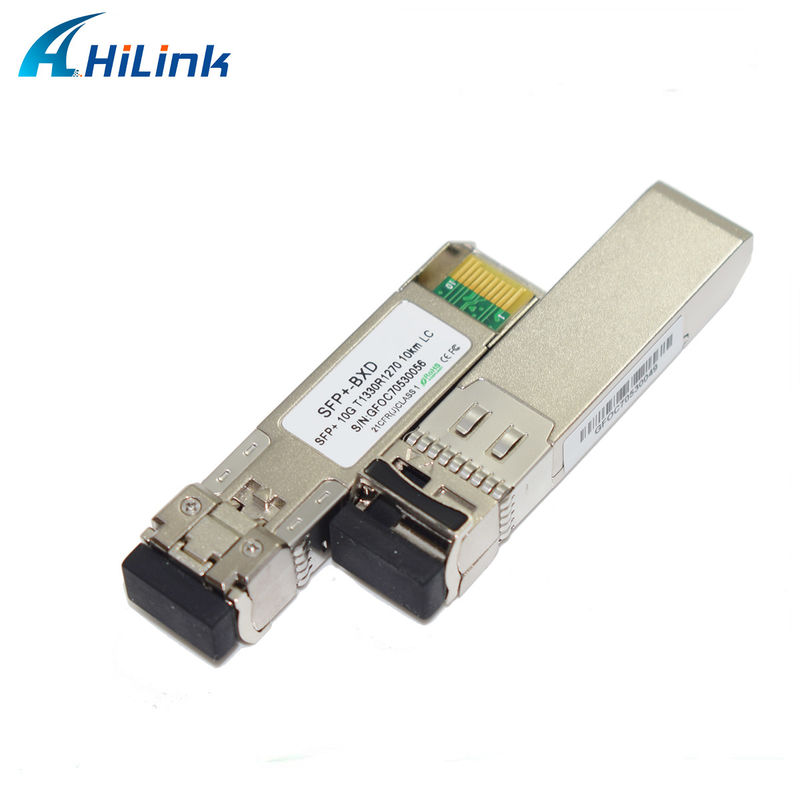

Real Photo
Our Service
OEM and ODM:
OEM/ODM order is available.
Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
Company Information
Packing & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
問い合わせを直接私たちに送ってください.
