Place of Origin:
Guangdong, China
ブランド名:
Hilink
証明:
CE RoHs
Model Number:
HL-QSFP28 100G BIDI 80KM

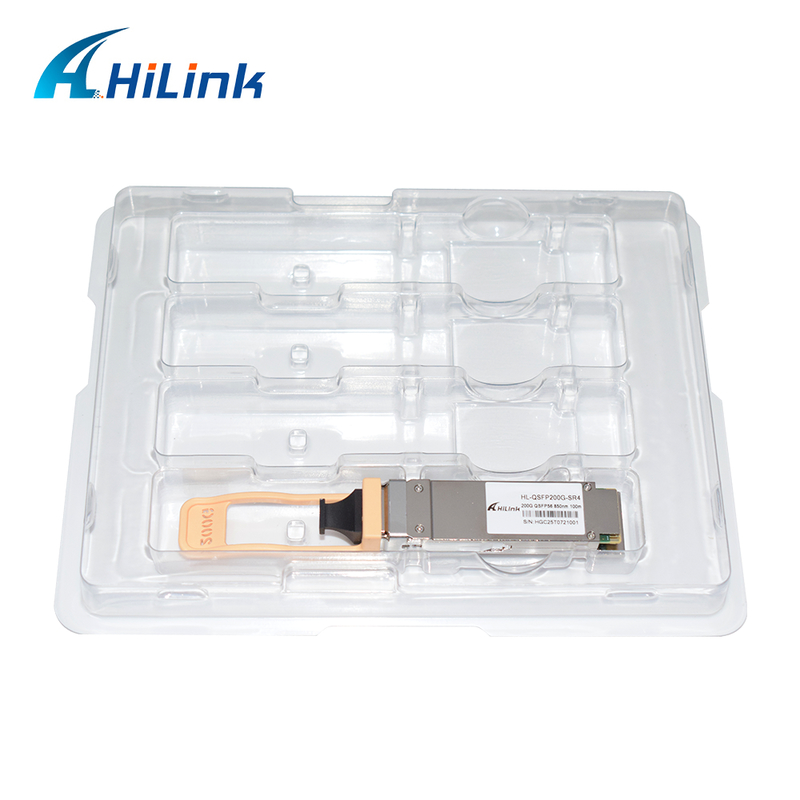

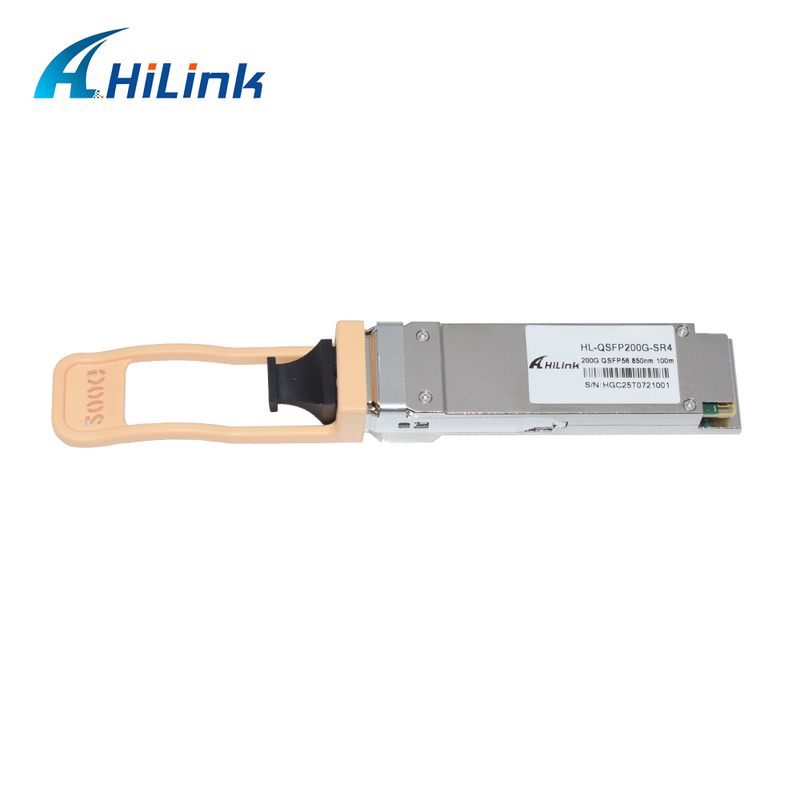

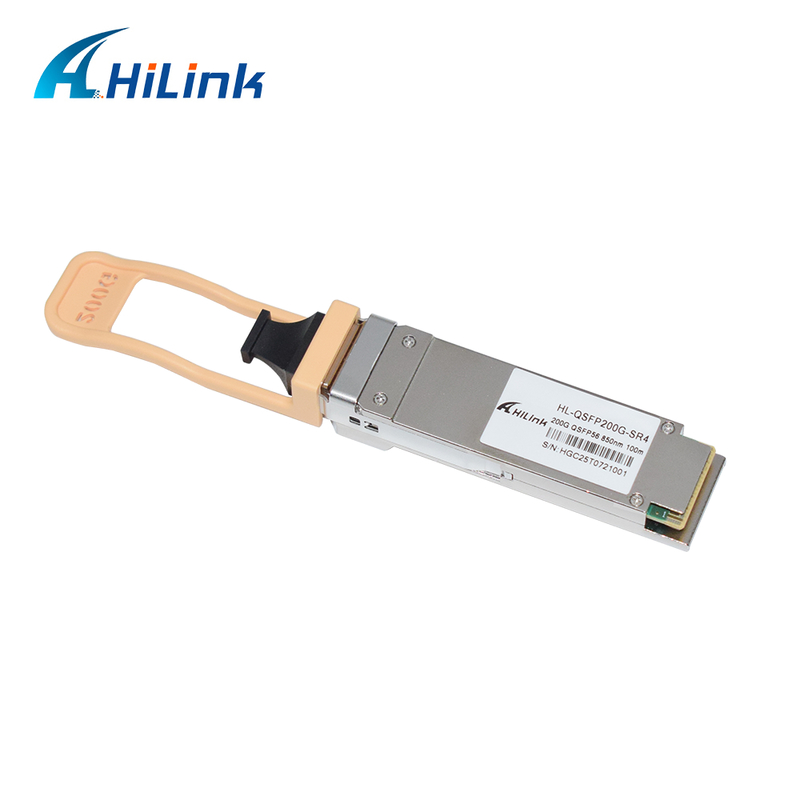

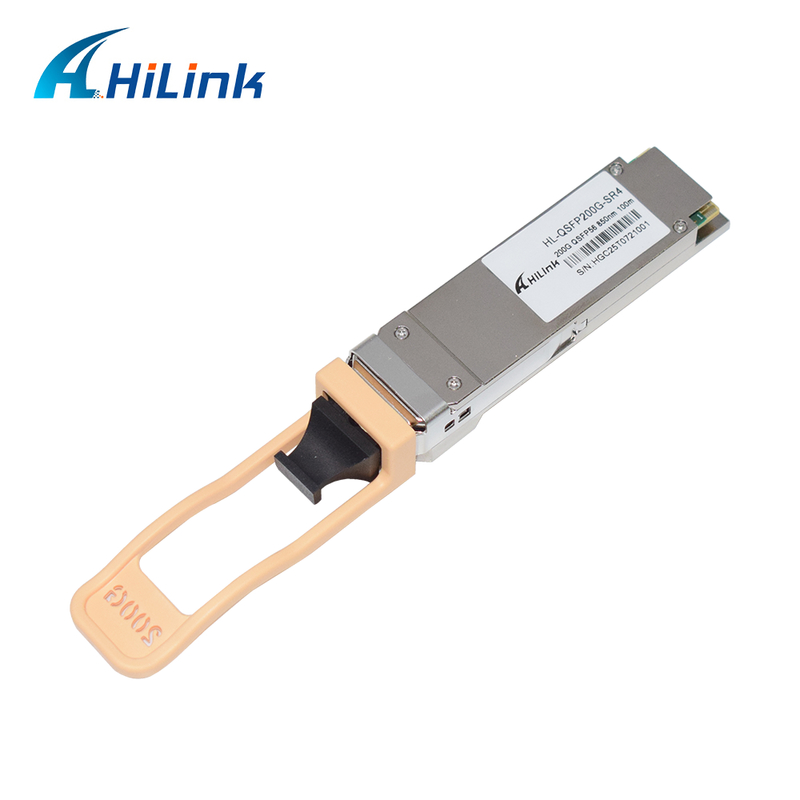

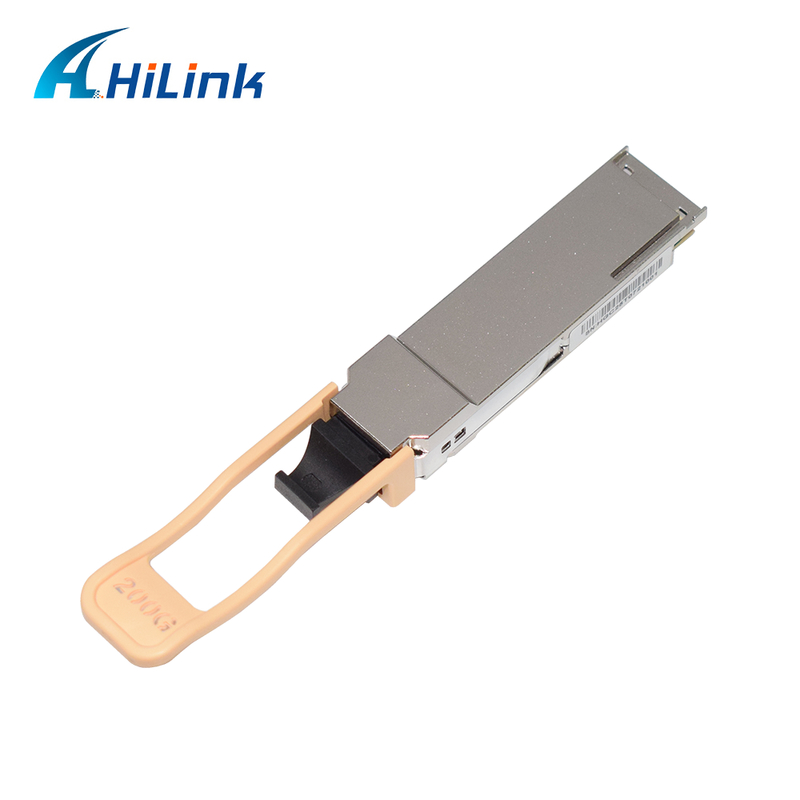

QSFP200G QSFP56 200G SR4 Hot Pluggable Optical Transceiver with 70m@OM3/100m@OM4 FEC, Single MPO12 Multimode Fiber, RoHS compliant for 200GBASE-SR4 Ethernet links in data centers.
| Attribute | Value |
|---|---|
| Products name | 200G QSFP56 SR4 |
| Wavelength | 850nm |
| Connector | Single MPO12 |
| Max Cable Distance | 70m/100m |
| Warranty | 3 years |
| OEM | Support |
| Delivery time | 3-7 working days |
| Case temperature range | 0 ~ +70℃ |
| RoHS | Compliant |
The HL-QSFP200G-SR4 is a 4×50Gbps multimode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70 m on OM3 fiber or 100 m on OM4 fiber with FEC.
OEM/ODM order is available.
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most brands. For more details, please contact us.
