40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Compliant with 40G Ethernet IEEE802.3ba QSFP+ Transceiver

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

Single mode QSFP+ Transceiver

起源の場所:

中国広州

ブランド名:

HILINK

証明:

CE FCC Rohs

モデル番号:

HL-QSFP-40G-ER4

連絡 ください
引金 を 求め て ください
製品詳細
製品名:
40G QSFP+ 60Km
Connetor:
デュプレックスLC
データレート:
40g
距離:
60km
温度範囲:
0°C ~ +70°C
証明:
RoHS Compliant
タイプ:
光ファイバートランシーバー、40g QSFP+
デジタル診断機能:
組み込み
支払いと送料の条件
最小注文数量
1pcs
価格
EXW: 345~367USD/PCS
パッケージの詳細
静的な袋、プラスチック平たい箱、小売り箱は、によって要求する
受渡し時間
5-8workingdays
支払条件
ウエスタンユニオン、T/T、L/C
供給の能力
100pcs/月
製品説明
40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode
Product Overview

The HL-QSFP-40G-ER4 is a high-performance transceiver module designed for 60km optical communication applications, compliant with 40GBASE-ER4 of the IEEE P802.3ba standard. This module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission.

Key Features
  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 Lite
  • QSFP MSA compliant
  • APD photo-detector
  • Up to 60 km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Operating temperature range: 0°C to 70°C
  • RoHS Compliant
Applications
  • Rack to rack connections
  • Data center switches and routers
  • Metro networks
  • 40G BASE-ZR4 Lite implementations

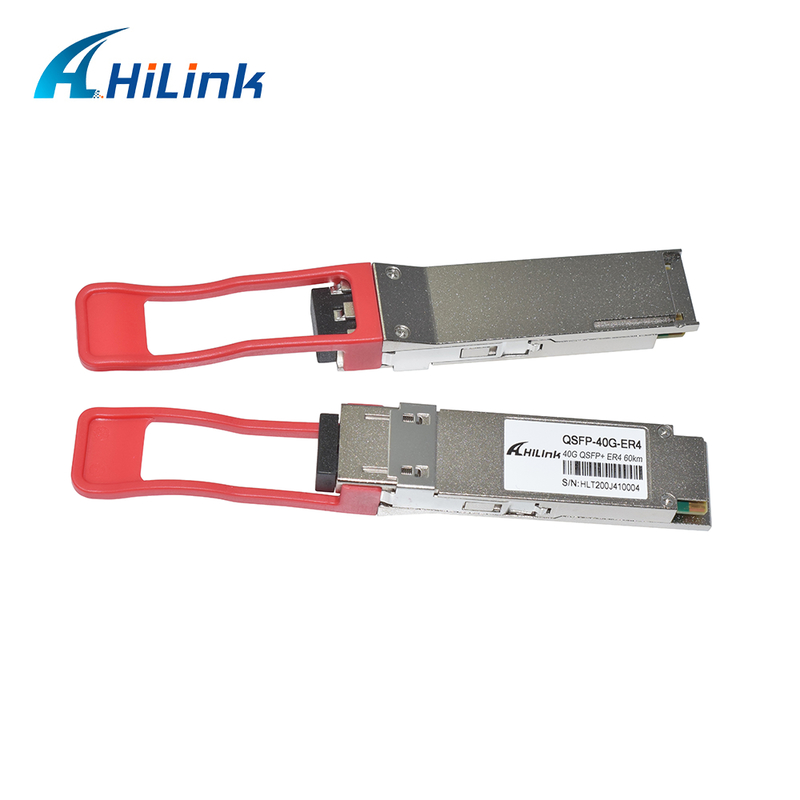

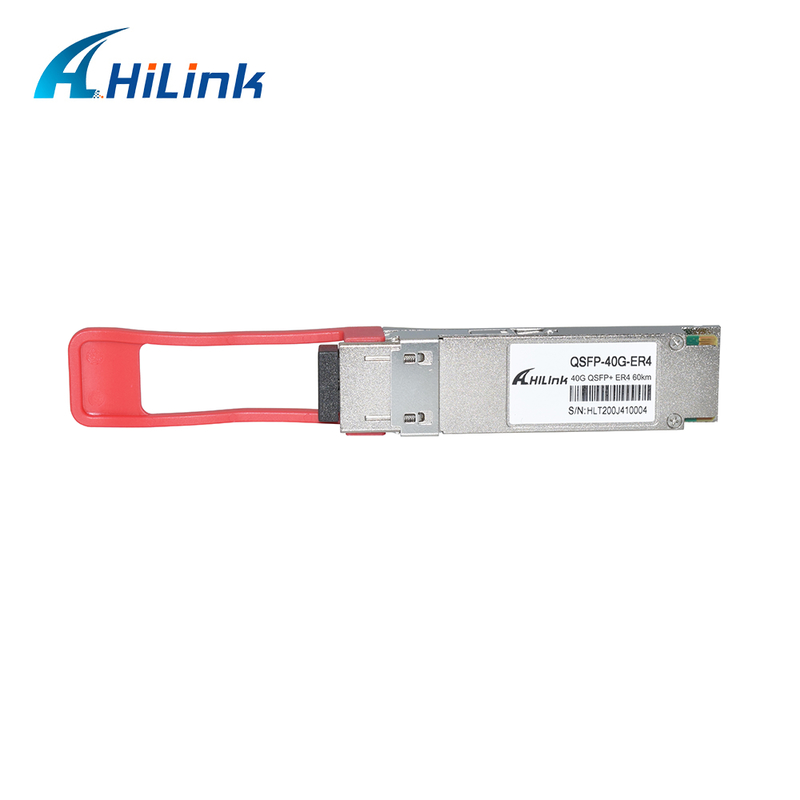

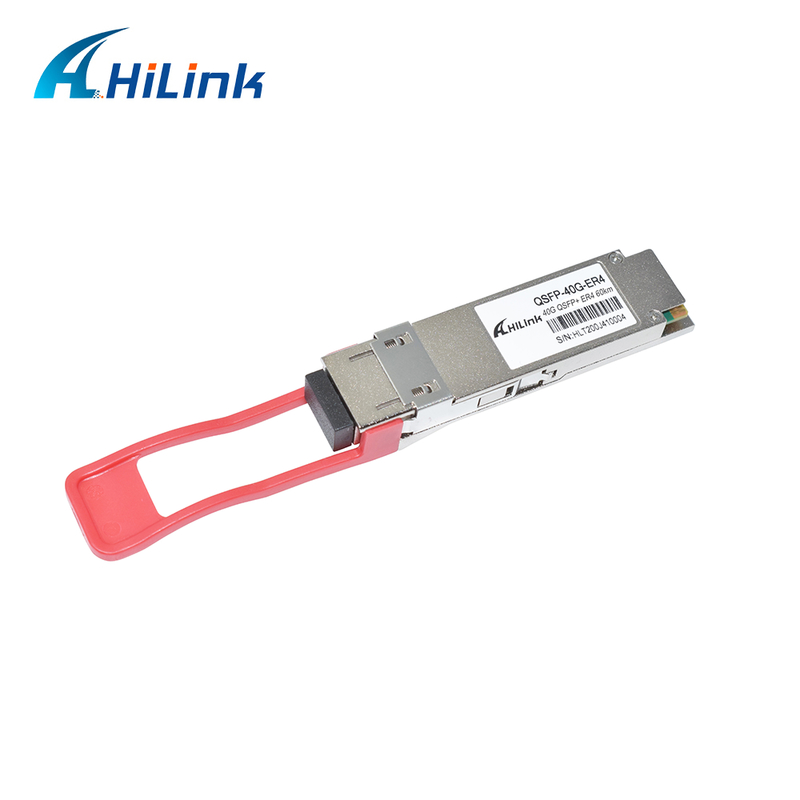

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 0 40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 1 40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 2
Our Services
OEM and ODM: Custom orders are available to meet specific requirements.
Quality Guarantee

All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes functional and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

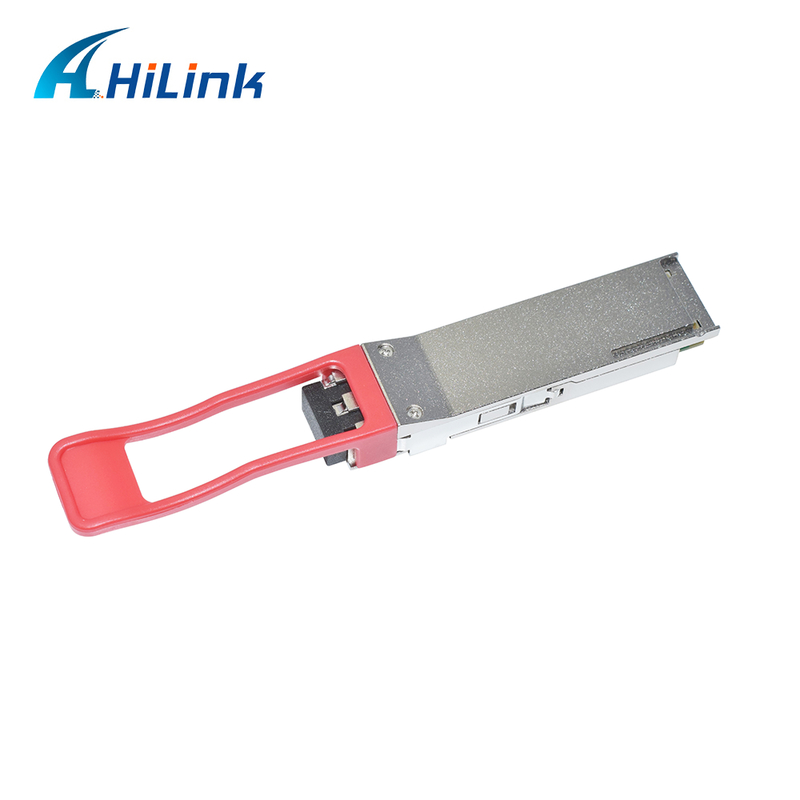

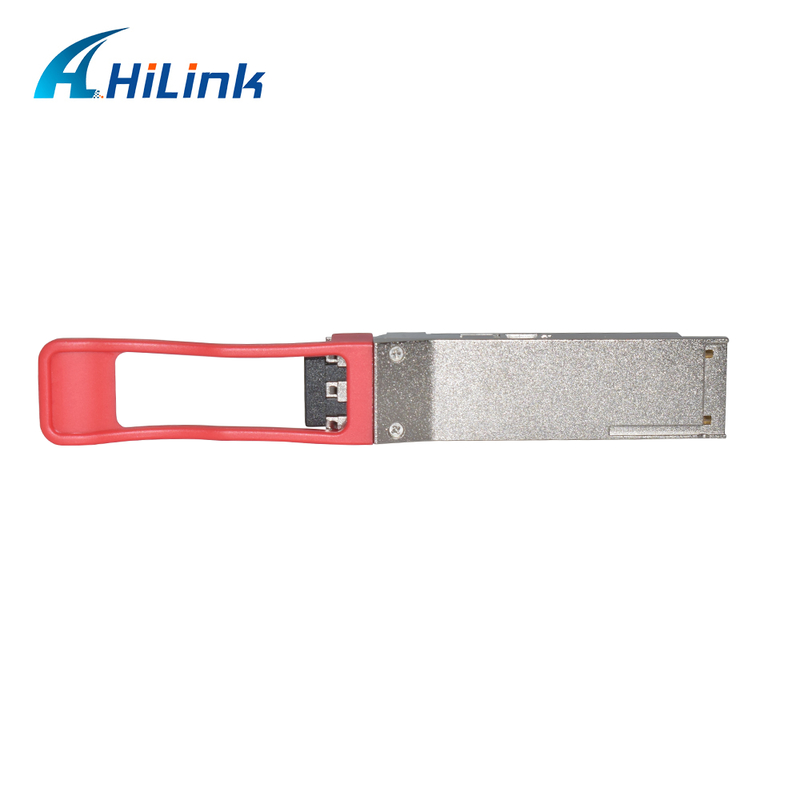

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 3 40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 4
Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 5
