Place of Origin:
Guangdong, China
ブランド名:
Hilink
証明:
CE Rohs
Model Number:
QSFPDD-400G-SR
HL-QSFP200G-SR4
200G QSFP56 SR4 Optical Transceiver
General Description
The HiLink 200G QSFP56 SR4 is a 4×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.
Features
l 4x53.125Gb/s electrical interface (200GAUI-4)
l Reach up to 70m on MMF(OM3)
l Reach up to 100m on MMF(OM4)
l Single +3.3V power supply
l Case temperature range: 0 ~ +70℃
l Maximum power consumption 5W
l Single MPO12 connector
l RoHS complaint
Application
l 200GBASE-SR4 Ethernet links
l Data centers

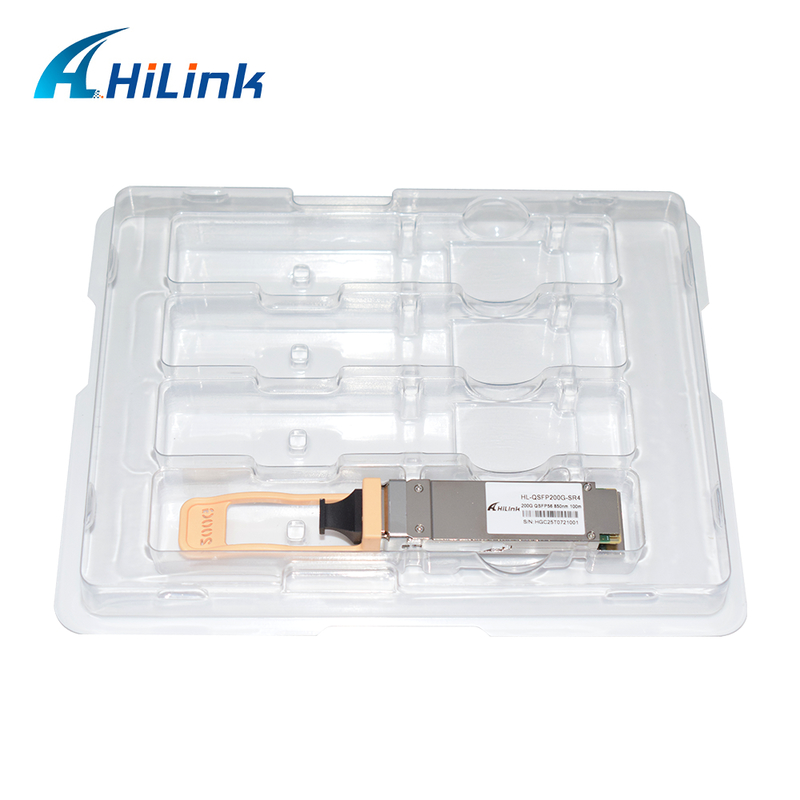

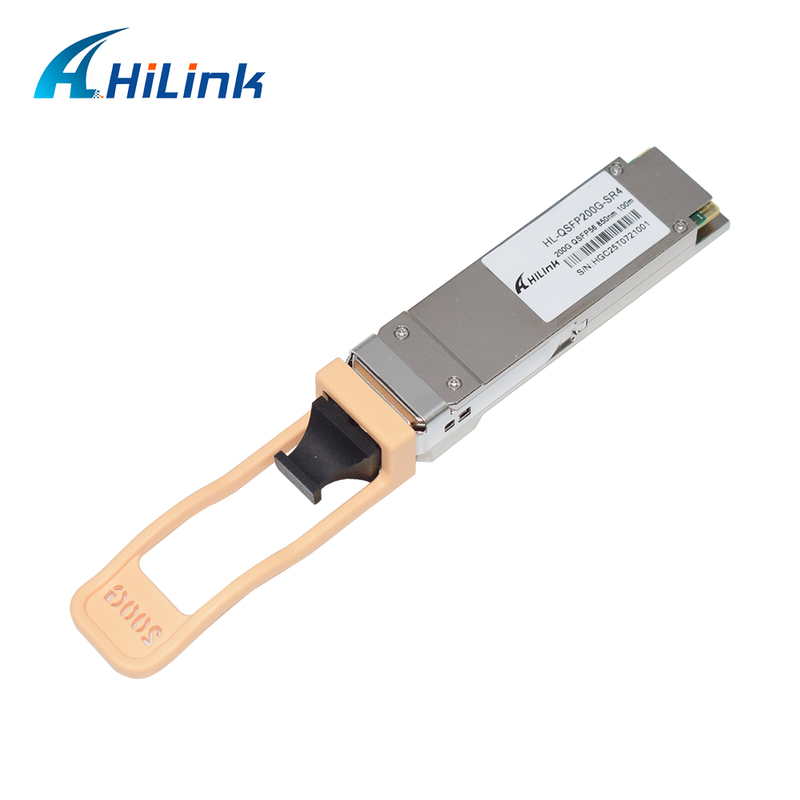

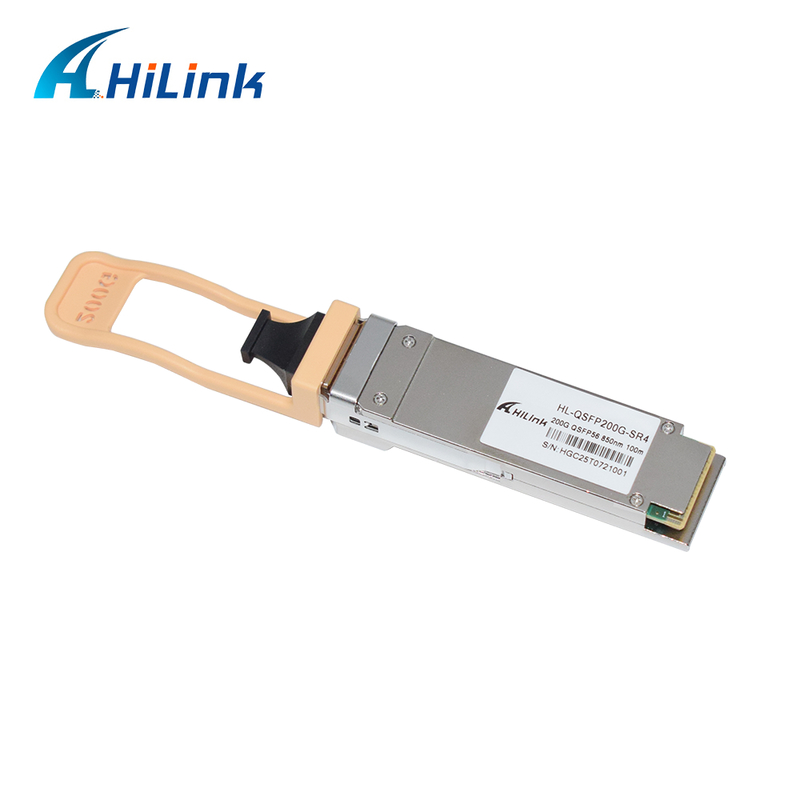

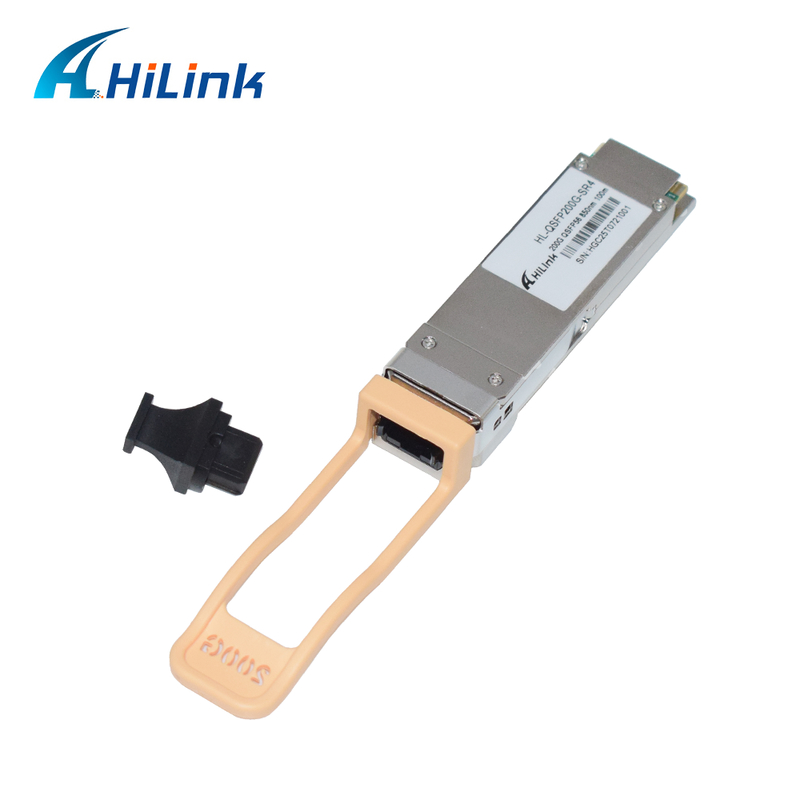

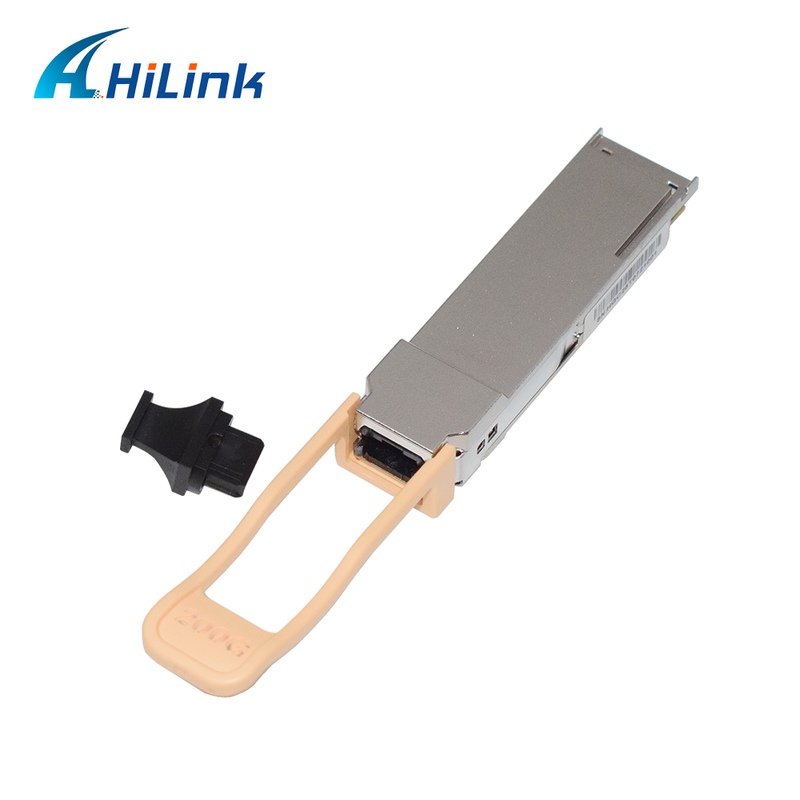

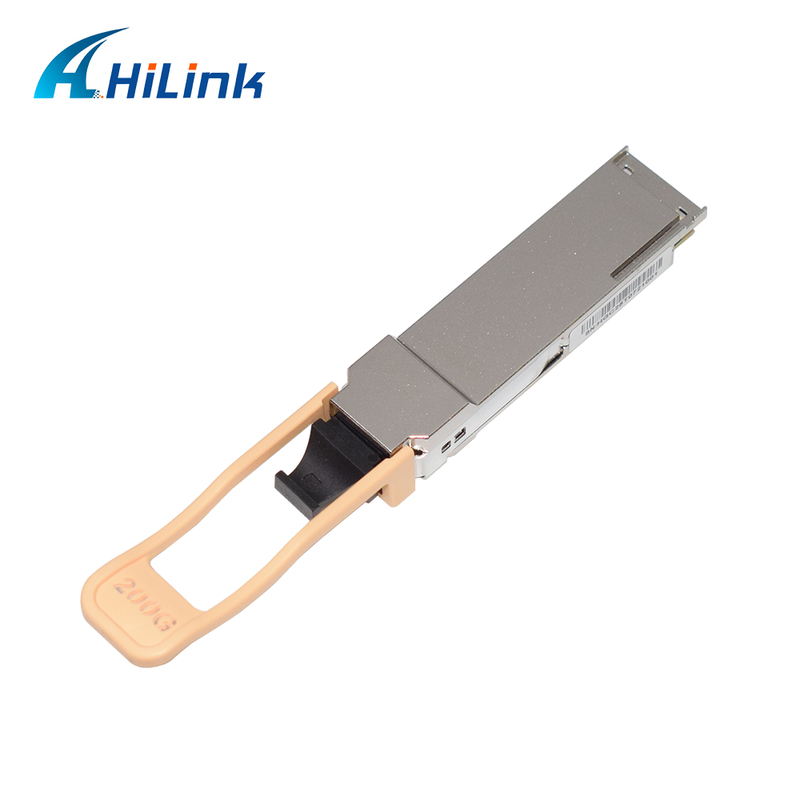

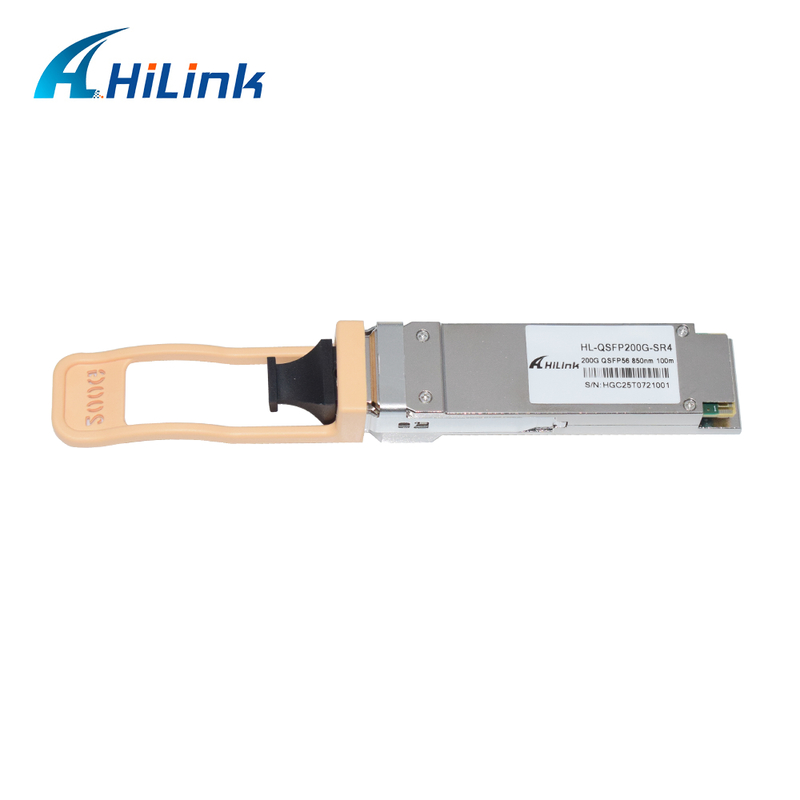

Pictures
Warranty:
We promise all the advertised optical transceivers are brand new with new components and parts.
We absolutely never use old and refurbished materials.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
問い合わせを直接私たちに送ってください.
