400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR transceiver module

coherent optical transceiver 0-75℃

QSFP-DD transceiver with extended temperature range

起源の場所:

中国広州

ブランド名:

Hilink

証明:

CE Rohs

モデル番号:

400g-qsfpdd-zr

連絡 ください
引金 を 求め て ください
製品詳細
製品名:
400g-qsfpdd-zr
データレート:
400g
動作温度:
75℃への0
支払いと送料の条件
最小注文数量
1個
価格
Send Inquiry know latest price
パッケージの詳細
プラスチックボックス+カートン
受渡し時間
5-8営業日
支払条件
T/T、Western Union、Alipay、PayPal/Wechat/貿易保証
供給の能力
2000ピース/週
製品説明
400G QSFP-DD ZR Coherent Transceiver 0-75℃
Product Overview

The 400G QSFP-DD ZR Transceiver is a high performance, cost effective module for optical data communication applications to 400G. The 400G QSFP-DD ZR is designed to 400G 120Km DCI DWDM applications without inline chromatic dispersion compensation.

Features
  • QSFP-DD MSA compliant type 2B package
  • Up to 120Km transmission distance
  • Client signal 400GbE or 4x100GbE
  • Line Modulation format 400G DP-16QAM
  • C-band tunable, supports 100/75GHz grid spacing, support 0.1GHz fine tuning
  • TX power -13dBm~-9dBm tunable
  • Support ingress LF hold-off time configure
  • Support hitless firmware upgrade
  • Compact size (18.35 mm × 93.26 mm × 8.50 mm)
  • Duplex LC Receptacle
  • Operating case temperature: 0℃ to 75°C
  • Maximum power consumption 18W (400GbE)
  • Single 3.3 V power supply
  • RoHS 2 compliant
Applications
  • Edge DCI 400GBASE-ZR application
  • 30~40Km unamplified 400GbE P2P link
  • Up to 120Km P2P link with amplification
Product Images

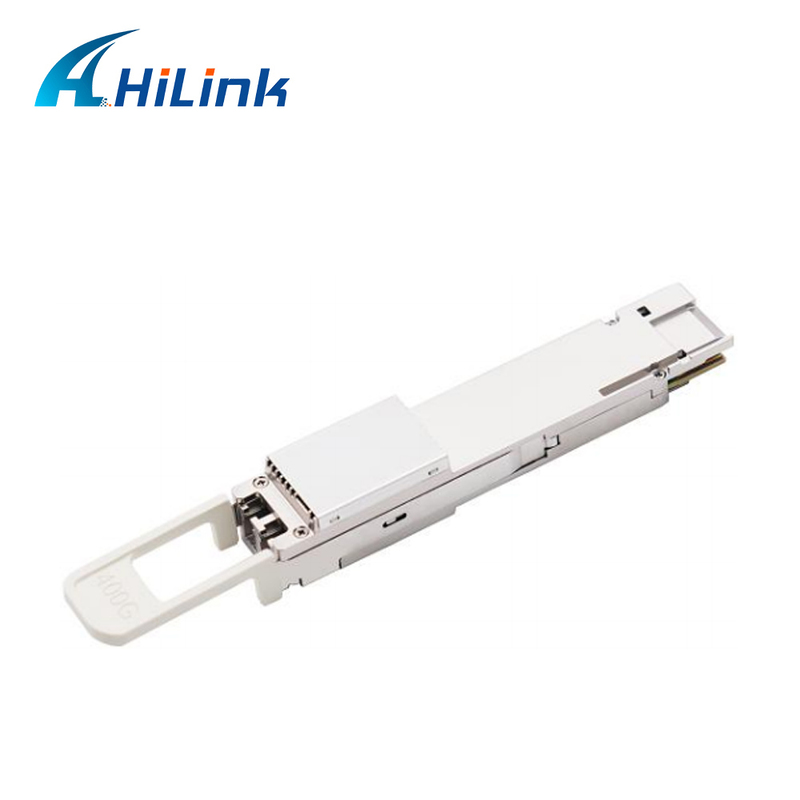

400G QSFP-DD ZR Coherent Transceiver 0-75℃ 0
Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
