1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance

1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance

1000Base-SX SFP Transceiver

MMF Optical Transceiver

RoHS Compliant Fiber Optic Transceiver

起源の場所:

中国広州

ブランド名:

HILINK

証明:

CE FCC Rohs

モデル番号:

HL-SFP-GE-SX

連絡 ください
引金 を 求め て ください
製品詳細
製品名:
1.25g SFP 2km
Connetor:
デュプレックスLC
データレート:
1.25G
波長:
1310nm
距離:
2km
温度範囲:
0°C ~ +70°C
ファイバータイプ:
金融機関
証明:
RoHS Compliant
デジタル診断機能:
組み込み
支払いと送料の条件
最小注文数量
1pcs
価格
EXW: 3.5~4.5USD/PCS
パッケージの詳細
静的な袋、プラスチック平たい箱、小売り箱は、によって要求する
受渡し時間
5-8workingdays
支払条件
ウエスタンユニオン、T/T、L/C
供給の能力
100pcs/月
製品説明

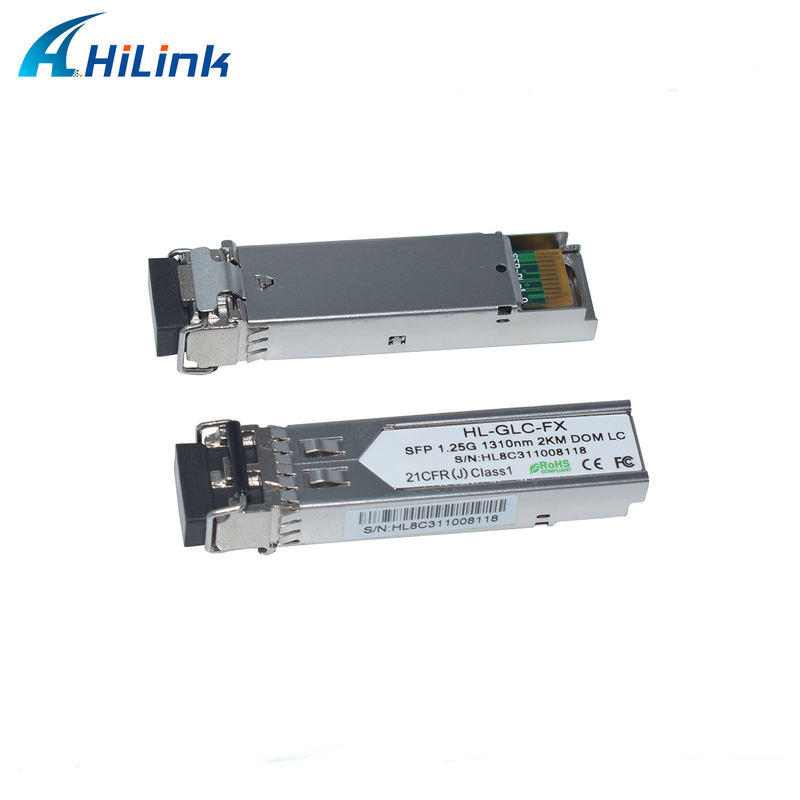

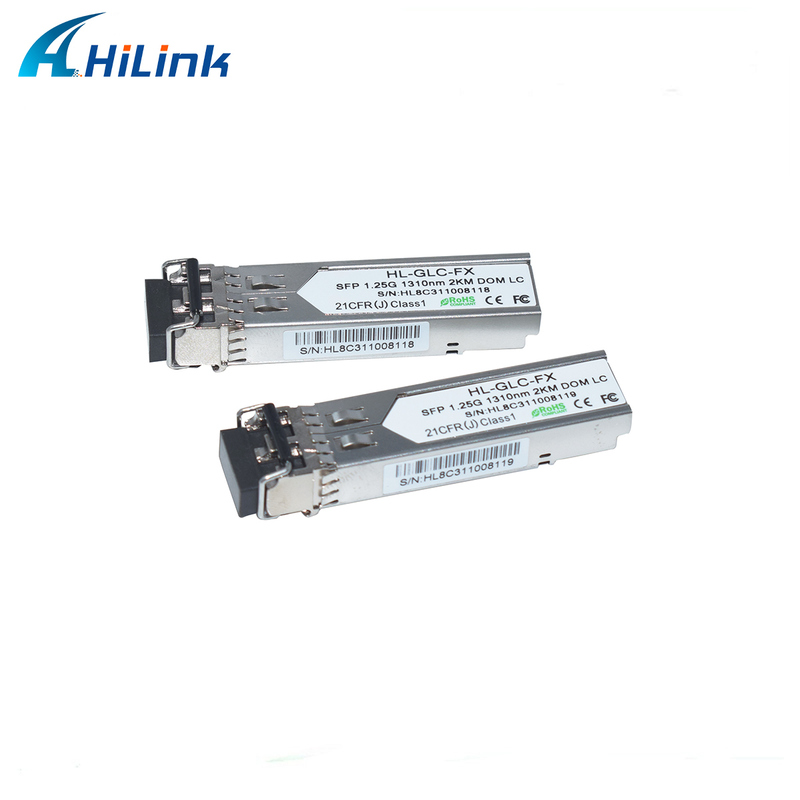

1.25G SFP 2km 1000Base-SX Transceiver 1310nm Duplex LC
Product Description

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free.

Key Features
  • Up to 1.25Gb/s dual data links
  • Hot-pluggable SFP footprint
  • 1310nm FP laser transmitter
  • Duplex LC connector
  • Up to 2km on 50/125µm MMF
  • Metal enclosure for lower EMI
  • Single +3.3V power supply
  • Low power dissipation <600mW
  • Commercial operating temperature range: 0°C to +70°C
Applications
  • 1.25Gb/s 1000Base-SX Ethernet
  • 1.06 Gb/s Fibre Channel
1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance 0 1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance 1 1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance 2
Our Service

OEM and ODM: OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What We Supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.

1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance 3 1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance 4

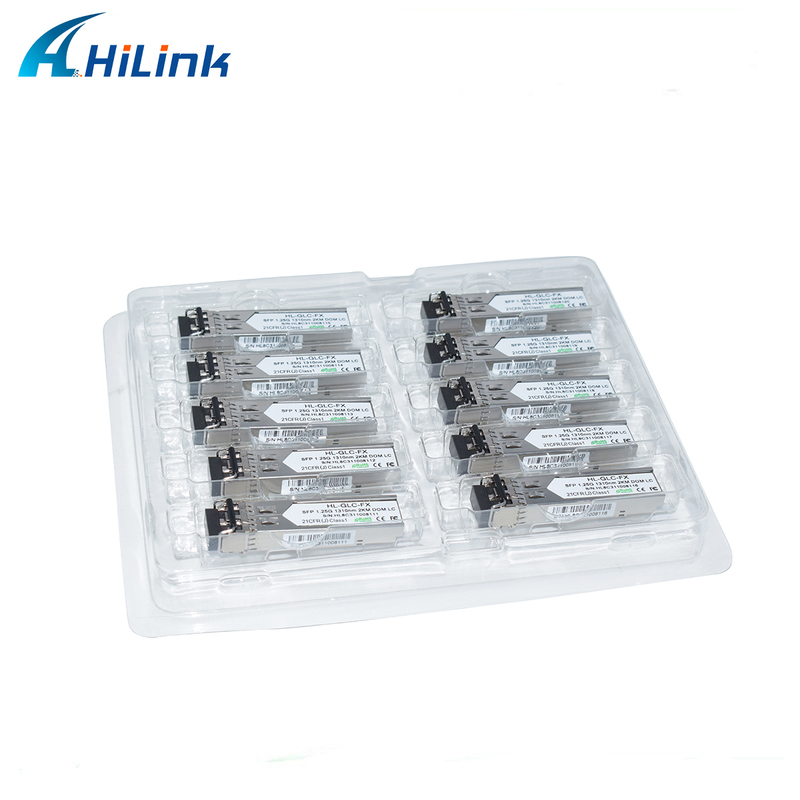

Packaging & Shipping

International Express: DHL, FedEx, EMS, TNT, UPS and so on. It takes 3-7 days.

1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance 5
