起源の場所:
広東省、中国
ブランド名:
HILINK
証明:
CE FCC Rohs
モデル番号:
HL-QSFPDD-400G-DR4
QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP Transceiver
An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP DD DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP-DD MSA-compliant edge type connector.
QSFP-DD MSA compliant
Parallel 4 Optical lanes
IEEE 802.3bs 400GBASE-DR4 Specification Compliant
Up to 500m transmission on single mode fiber(SMF) with FEC
Operating case temperature: 0 to 70℃
8x53.125Gb/s electrical interface (400GAUI-8)
Data Rate 106.25Gbps (PAM4) per channel.
Maximum power consumption 12W
MPO-12 connector
RoHS Compliant
Applications
400GBASE-DR4 Ethernet links
Data centers
Telecom networking
| QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100M LC |
| QSFP28-100G-LR4 | 100GBASE-LR4 1310nm 10KM LC |
| QSFP28-100G-ER4 | 100GBASE-ER 1310nm 40KM LC |
| QSFP28-100G-ZR4 | 100GBASE-ZR 1310nm 80KM LC |
| QSFP56-200G-SR4 | 200GBASE-SR4 850nm 100M MPO |
| QSFP56-200G-FR4 | 200GBASE-DR4 1310nm 2KM MPO |
| QSFPDD-400G-SR8 | 400GBASE-SR8 850nm 100M MPO |
| QSFPDD-400G-DR4 | 400GBASE-DR4 1310nm 500M MPO |

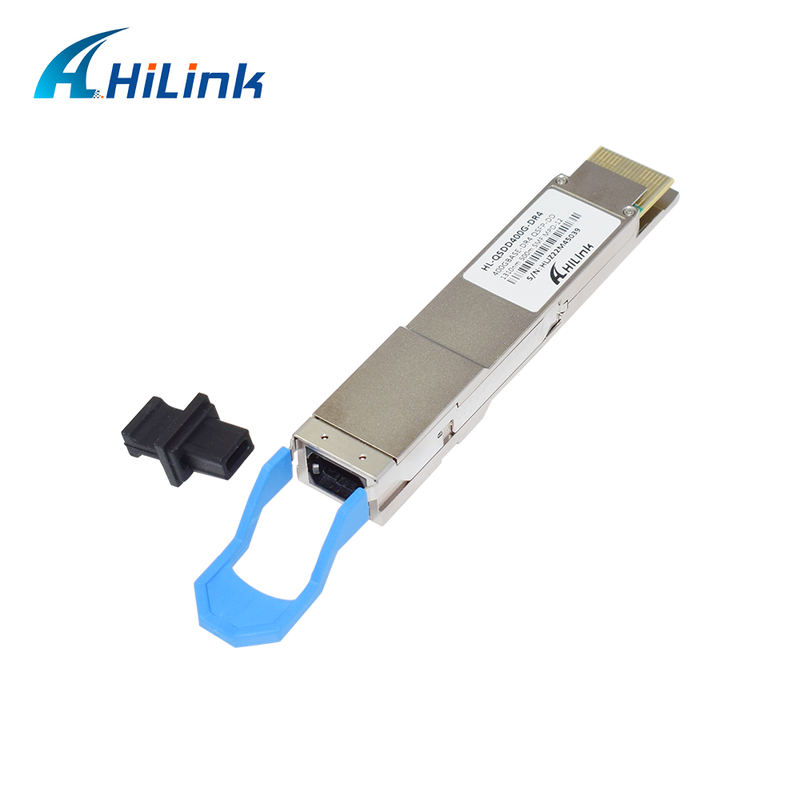

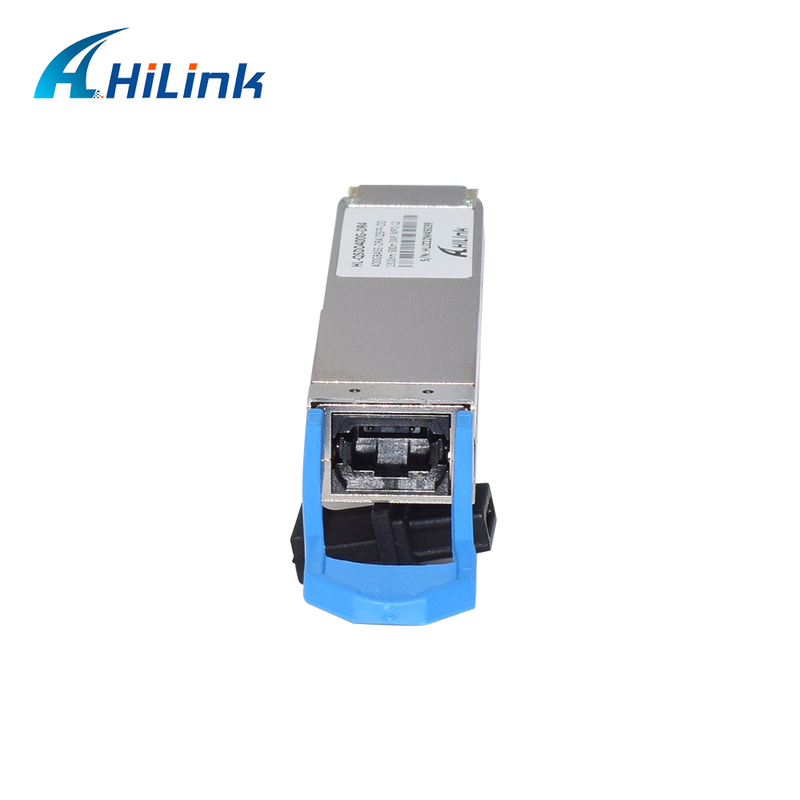

Product picture shows:
Mechanical Drawings
Application
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
問い合わせを直接私たちに送ってください.
